I have a custom computer. My computer specs are attached, and are also viewable here::
My Computer Specs
Here is my BIOS info, according to esupport.com, I have the latest BIOS:
BIOS Type: Phoenix-Award
BIOS Date: August 31st 2004
BIOS ID: 08/31/2004-KT400-8235-SV400C-00-None
BIOS OEM: SV400 08/31/2004 - 6.00 PG
Chipset: VIA 82C3189 rev 0
SuperIO: ITE 8705/SiS 950 rev 2 at port 002E
Manufacturer: VIA Technologies, Inc.
Motherboard: KT400-8235
My motherboard manufacturer, Syntax, is out of business.

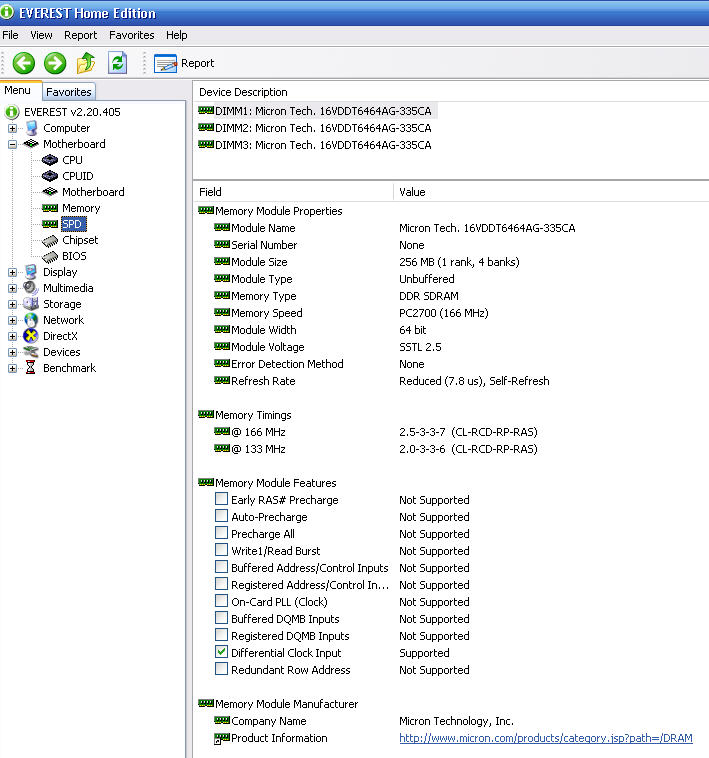

I just installed 3 x 1GB PC2700 333MHz DDR Memory (1 sided) into the 3 slots on my main board. The motherboard manual says it supports, "DDR up to 200/266/333/400 MHz DDR SDRAM memory module. Accommodates three unbuffered 2.5V 184-pin slots. Each slot supports up to 1BG with a maximum capacity of 3GB.
I tested each memory stick independently using Memtest86+ V2.01 Memtest86+ - Advanced Memory Diagnostic Tool. Each stick passed 11 passes with flying colors.

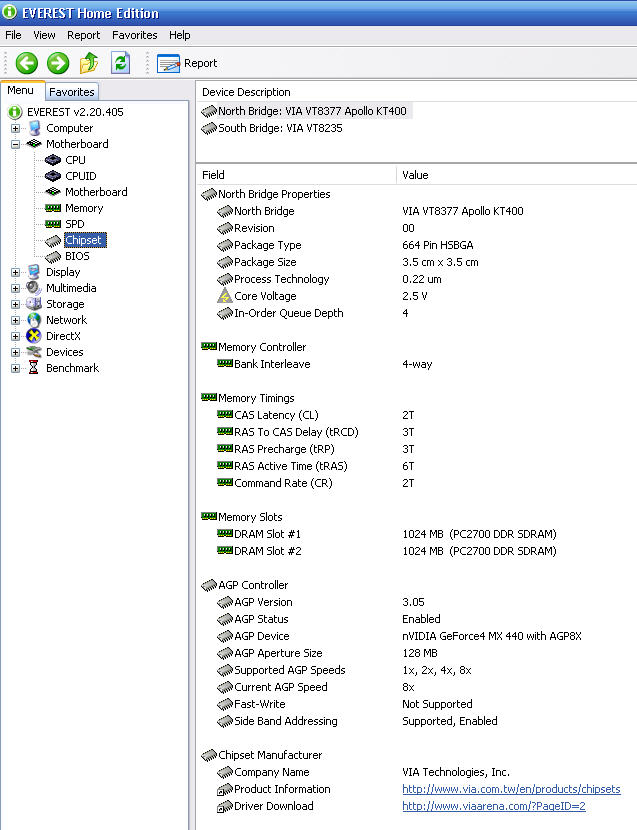

I tried every combination of memory/slots on the main board and the maximum the BOIS picks up is 2GB. Which means it is not reading from 3 slots, only 2 at a time. It doesnt matter which two. All slots work, just not all 3 together. I have two identical boards with the same BIOS version experiencing the same issue. How do I get the computer to recognize all three slots and all three memory sticks simultaneously?
Specs.pdf (194 KB)
