Best way to do this ?

Discussion in 'Video Cards, Displays and TV Tuners' started by Drakey, Nov 11, 2005.

  1. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Ok im expecting my ATI x800 GTO in the post soon and i am currently using my Geforce x5200 with the latest Nvidia drivers installed. What is the best way to install my new graphics card when it comes?


    p/s... Im having problems with my system recovery disk at the moment so try to keep the suggestions away from that area :) thanks

    Drakey, Nov 11, 2005
    #1
  2. pelvis_3

    pelvis_3 HWF Member For Life

    Likes Received:
    123
    Trophy Points:
    63
    It's pretty simple to do:
    Un-install the FX in device manager,
    then un-install the nVidia drivers with the nVidia un-installer,
    shut down the PC,
    take out the FX and pop in the GTO,
    power on the system and log in to windows,
    after windows has done all the fancy mumbo jumbo install the ATi drivers and then restart!

    Other HF members may have a different way to do this!

    pelvis_3, Nov 11, 2005
    #2
  3. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    When you say "then un-install the nVidia drivers with the nVidia un-installer", do you mean remove it using add/remove programs? :eek:

    Drakey, Nov 12, 2005
    #3
  4. kool_azn

    kool_azn Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    yep, and wats the interface of ur GTO Agp or PCIe?

    kool_azn, Nov 12, 2005
    #4
  5. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Pci

    Drakey, Nov 13, 2005
    #5
  6. kool_azn

    kool_azn Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    hmm last ive known isnt a FX5200 Agp?
    wats all of ur system specs?

    kool_azn, Nov 13, 2005
    #6
  7. pelvis_3

    pelvis_3 HWF Member For Life

    Likes Received:
    123
    Trophy Points:
    63
    Hmm, i'm confused!
    What interface are you using right now, AGP, PCI or PCIe?
    Whatever you do, don't confuse PCI with PCIe
    PCIe is the newest Video Card interface whereas PCI is the worst interface you can use for Video Cards!

    GTO's don't come in PCI, you must mean PCIe?

    pelvis_3, Nov 13, 2005
    #7
  8. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    My FX5200 is PCI and works, so when my GTO arrives your saying it wont work in my system? :(

    Drakey, Nov 13, 2005
    #8
  9. pelvis_3

    pelvis_3 HWF Member For Life

    Likes Received:
    123
    Trophy Points:
    63
    Not if you intend on using it in a AGP or PCI slot!

    pelvis_3, Nov 13, 2005
    #9
  10. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    or for F*** sake, so there is NO other way to get that to work on my computer?

    Drakey, Nov 13, 2005
    #10
  11. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Ok, i opened up my comp and found out that i have 3 slots (FX5200 is fitted in one of these) and a seperate orange coloured slot which is diffrently positioned from the other 3 slots... will my GTO fit in there?

    Drakey, Nov 13, 2005
    #11
  12. Matt555

    Matt555 iMod

    Likes Received:
    98
    Trophy Points:
    48
    That slot is probably AGP, what is your Motherboard model, if the GTO is AGP then it will go in there, if it's PCI-e then you'll need a new motherboard.

    Matt555, Nov 13, 2005
    #12
  13. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    AMD Athlon 64 3400+

    Drakey, Nov 13, 2005
    #13
  14. Matt555

    Matt555 iMod

    Likes Received:
    98
    Trophy Points:
    48
    That's your CPU, what about your Motherboard, download PC Wizard 2005 and then click on the icon on the left hand side that looks like a computer tower with a Green Arrow pointing to it, this will tell you your 'Mainboard' Information (the icon is the middle on the first row)
    Tell us if it tells you that your Motherboard has an 'AGP Bus'
    Also where did you get your graphics card from, is it PCI-e or AGP.

    Matt555, Nov 13, 2005
    #14
  15. Matt555

    Matt555 iMod

    Likes Received:
    98
    Trophy Points:
    48

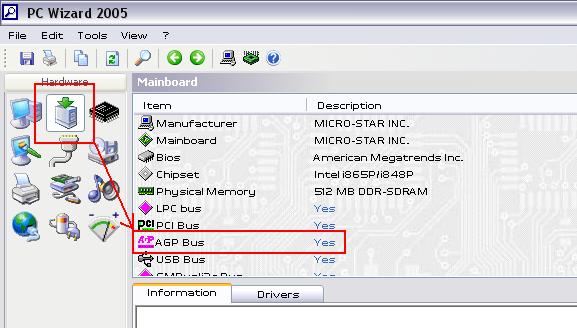

    I have attached an image of what to look for in PC Wizard, if it doesnt have AGP but has PCI-e then you'll need a PCI-e Graphics Card, if it does say AGP then you'll need an AGP Graphics Card.


    Attached Files:

    Matt555, Nov 13, 2005
    #15
  16. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Drakey, Nov 13, 2005
    #16
  17. Matt555

    Matt555 iMod

    Likes Received:
    98
    Trophy Points:
    48
    Okay then that different coloured slot that is in a slightly different position is AGP, now what card did you order, AGP or PCI-e? Have you go the link to where you bought it from?

    Matt555, Nov 13, 2005
    #17
  18. Drakey

    Drakey Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Drakey, Nov 13, 2005
    #18
  19. Matt555

    Matt555 iMod

    Likes Received:
    98
    Trophy Points:
    48
    Then it won't fit, you'll either need a new motherboard with PCI-e slots or you'll have to get the AGP card.

    Matt555, Nov 13, 2005
    #19
  20. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    See if you can exchange the card for an AGP version first...unless you're planning to jump to a motherboard with PCIe...

    Big B, Nov 14, 2005
