Help Identifying Power Connector Coupling

Discussion in 'General Hardware' started by Gus_19, May 25, 2013.

  1. Gus_19

    Gus_19 Geek Trainee

    Likes Received:
    0
    Trophy Points:
    1
    I'm trying to put on a new backlit keyboard for my XFR D630 with touchscreen. Unfortunately I did not receive the correct power connectors. While still dealing with the company on getting it corrected, I was wondering if anyone can help me identify this type of coupling or where I may be able to purchase one.

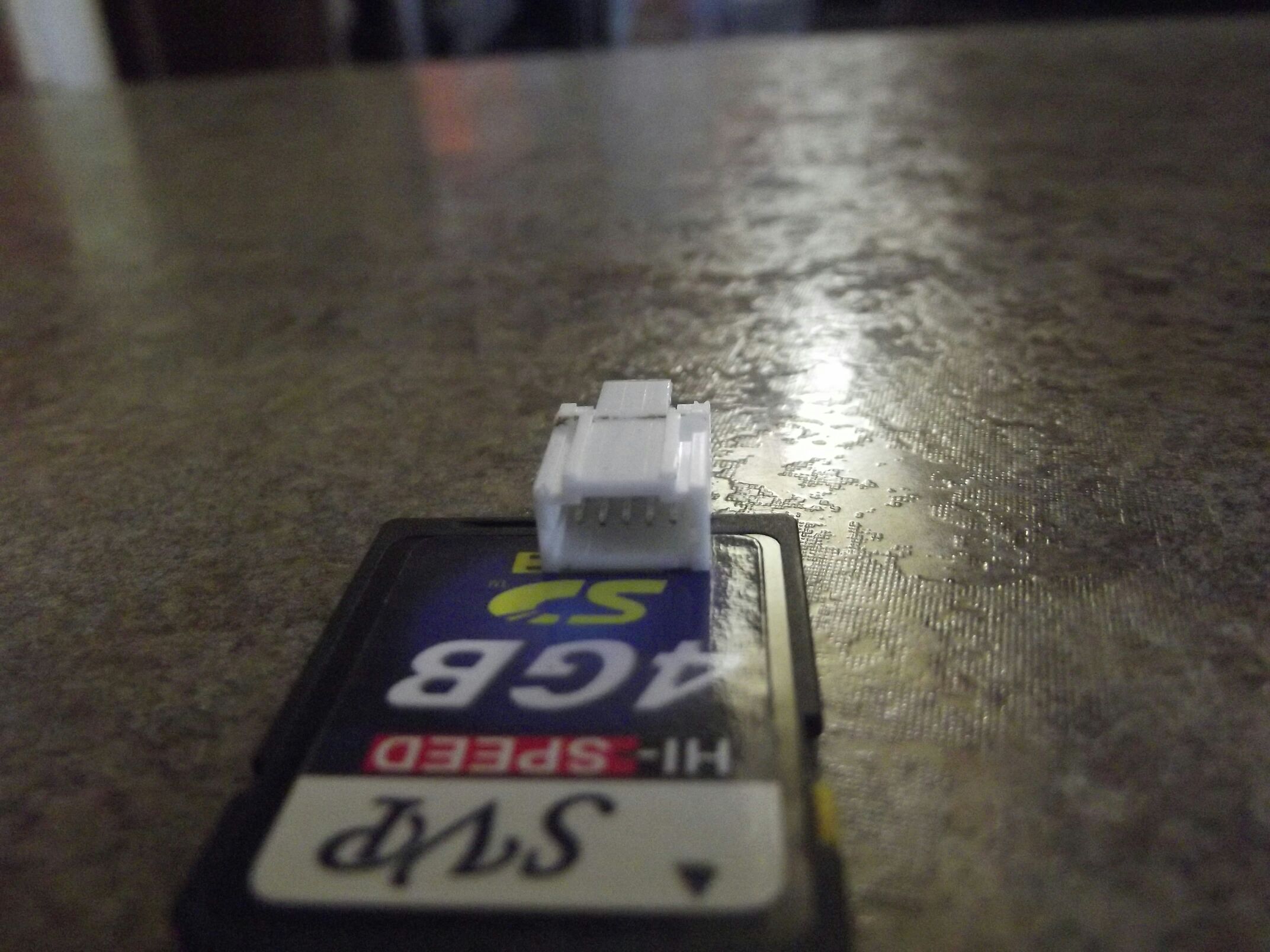

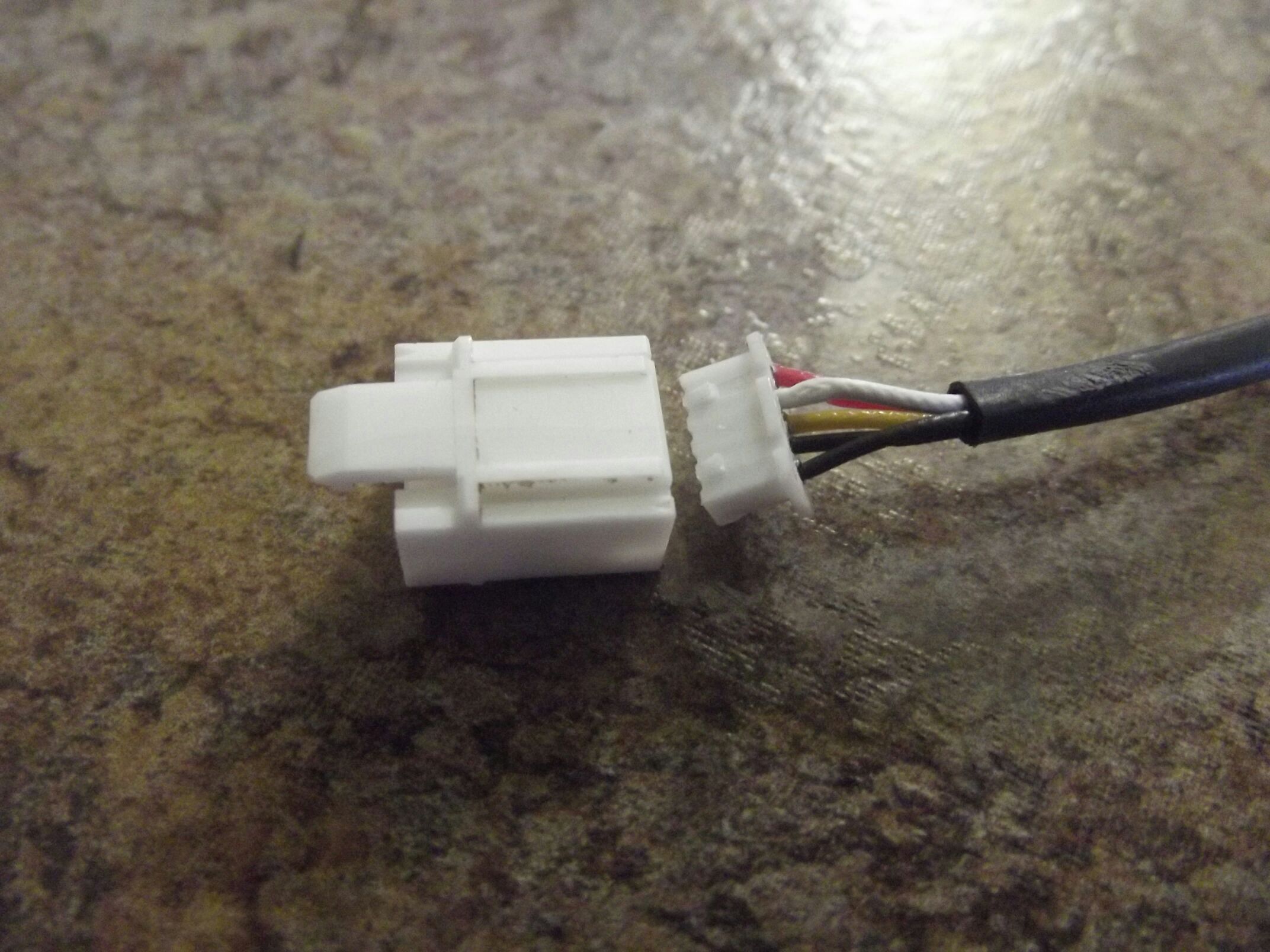

    It's a male connector coupling, with five pins. Not sure if it's made specific by Dell, but hoping there's someplace out on the internet (which I cannot find so far) which sells them. The second picture shows one of the power cords in hopes to display the picture 'to scale' as best as possible. DSCF2606.JPG DSCF2607.JPG
