I'm planning on building a new pc. And I've roughly roughed out what I want. Silverstone TJ10 case ATX SLI-compatible DDR2> PCIe Dual-Core motherboard. 600V> PSU 2GB> memory Nvidia 8800 GTX video Creative X-Fi audio 2x 250GB IDE drives 2x 250GB SATA drives 3 120mm LED case fans I'm still unsure of what motherboard and hard drive I should get. I've read on other forums dual-core is better for 3d applications as compared to quads. Also, should I go for better memory or more memory? I've already had 4 hard drives fail me this year and I'm not giving any more of them any excuse when I buy new ones. Is the theory of lower technology means longer lifespan and higher reliability? I've had a Maxtor 80GB IDE since 2001 and it's still going strong. Is the IDE/SATA/SATA2 difference very large? Are there any other video cards out there that perform better but at cheaper than the 8800? I can't find any in my immediate neighbourhoods, but I haven't the time to go hunting yet anyway. I could use my current CD-RW and DVD-RAM drives, so no need to get new ones unless they look really awkward. Any suggestions for LCD monitors? What would make the best use of power from a juggernaut like the 8800? I don't really care about noise heat or power consumption (not very environmentally friendly yes), since the sound (kinds of) reminds me the pc is still alive and temperatures rarely go above 37 degrees celcius even with the current (crappy) case closed, much less for a Silverstone. Any advice appreciated, nicky9499.
A good start but i would like to know your budget so i can give you some ideas. I would say that you should wait untill Intel's new Nehlam chip comes out that then will lower the price of the C2D and also the Q9450 so i suggest you get that. As for motherboard well it depends on you budget, the P35 chipset is for mid range budget but if you have money to spend then get a X48. something like this: Gigabyte GA-EP35-DS4 Intel P35 (Socket 775) Gigabyte GA-X48-DQ6 Intel X48 (Socket 775) Just one question what type of memory do you want DDR2 or DDR3???? I would say that the best manufacture of Hard Drives are Seagate, Western Digital and Samsung. SATA2 is the new format that gives you faster speed of hard drive. I would recommend that you get the ATi 4850 or if you have more cash get the 4870. If you going to use a mid range card then i suggest you get a monitor from 17 - 20 inch any higher and the GPU will struggle. i would say that the best monitor manufacture out there is Samsung i don't understand what you are asking.??
Oh, I wasn't asking anything there. Just saying that heat, power consumption and noise are not being taken into consideration on this particular build. Sorry for any misunderstandings. I'd put my budget somewhere around the 2000 US dollar mark. Of the two, which is cheaper and which is of higher "quality"? I've never really paid attention to memory. Is it better to have more memory or memory of higher quality? What's the difference between Kingston and Corsair, for example. Okay. Will I have a noticeable difference between 5400rpm IDE and 7200rpm SATA/SATA2? Does the speed and complexity (lots of bells and whistles etcetera) affect the fragility of the drive (more prone to failures)? If so, with money not being a factor, should I get a faster SATA drive or a traditional IDE one? Cheers, nicky9499.
I might have miss read it but o well no worries no harm done. But i gotta say that's a good budget. DDR2 is much cheaper but it's older technology and soon everyone will have to switch to DDR3 as new mobos only take it. But for now it's still a good idea to get DDR2 as it's cheaper and you can put something like 8GB of memory without costing you to much. As for DDR3 well it's new technology so therefore a lot more expensive and faster so it depends on how it all fits in your budget, becuase then you need to buy a DDR3 compatible mobo which costs more so the costs do add up, so why not shop around and see which fits your budget better. TBH i think IDE is rubbish you should stick with SATA2 all new mobos have it and IDE is fading away and people are forgetting about it.
Alright, one more question. I'm not really familiar with ATi's line of video cards. What are some of their mid to high end cards and what are their Nvidia counterparts of similar performance? Is there a comparism chart somewhere on the internet? If one of these cards can handle Grand Theft Auto IV for PC this November, I think it can pretty much do everything else. Also, when buying a video card, what are the more important specs I should look out for and what are some of the technical terms (example shader pipelines, teraFLOP and GDDR memory, if it's related to mobo memory at all). On a sidenote, I'm wondering if I should use XP or Vista (and 32-bit or 64-bit). Having used Vista on my notebook for almost a year now, I'm still quite reluctant to switch any of my PCs to Vista because of all it's "general errors" and know-it-all-screw-it-all behaviour (also, it's harder to theme). The only reason I can think of is it's DirectX 10 advantages and some Vista-only GFW games. Also, what are the pros and cons of 32 bit and 64 bit? Cheers, nicky9499 Edit: Pimp, I assume you're referring to the ATi Radeon (what's with Sapphire?) HD4850 below?
Okay. I've done my homework. And I've settled on the below components. What I need now is for some kind (and hopefully patient) soul to help me chck for compatibility issues and parts that could be replaced with better ones for around the same price. Also, it would be nice if someone can list other parts of immediate lower caliber (for example, 8600GT>8800GT>8800GTX) for the video cards, processor and mainboard. Asus has considerable reputation on many forums and I've decided to go with it, albeit slightly more costly. Multiple prices indicate different prices across different shops. Here goes: Cheers, nicky9499
I've put together some hardware for reference. I used newegg because it was simplest for me, but they should have competitive prices comparable for wherever you want to buy your hardware. I'm pretty sure everything here is within your budget. CPU Newegg.com - AMD Athlon 64 X2 5400+ Brisbane 2.8GHz 2 x 512KB L2 Cache Socket AM2 65W Dual-Core black edition Processor - Processors - Desktops Newegg.com - AMD Athlon X2 4850e 2.5GHz 2 x 512KB L2 Cache Socket AM2 45W Dual-Core Processor - Processors - Desktops I would look for a processor on the cheap side, AMD is coming out with their Deneb processors in a couple months, and they are going to be compatible with AM2+ boards, so i think that will be a wanted upgrade. The processors i picked out here are a lot better than the 4600 you were looking at. Main Board Newegg.com - GIGABYTE GA-MA790GP-DS4H AM2+/AM2 AMD 790GX HDMI ATX AMD Motherboard - AMD Motherboards Newegg.com - DFI LANPARTY DK 790GX-M2RS AM2+/AM2 AMD 790GX ATX AMD Motherboard - AMD Motherboards I really like the layout of the DFI board, and i just like Gigabyte, they are a pretty good board maker. Your board is fine, but it seems a little outdated. Memory Newegg.com - OCZ Reaper HPC Edition 4GB (2 x 2GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Dual Channel Kit Desktop Memory - Desktop Memory Newegg.com - CORSAIR 4GB (2 x 2GB) 240-Pin DDR2 SDRAM DDR2 1066 (PC2 8500) Dual Channel Kit Desktop Memory - Desktop Memory A lot of AM2+ boards like PC 1066 memory over PC 800, not that PC 800 won't work, their standards are usually PC1066. Also it would be better to have less faster memory than more slower memory. On ddr3 vs ddr2, there really haven't been any performance increases since ddr, they are just new standards, and to make memory work more efficiently with new processors. Storage Newegg.com - Western Digital Caviar Black WD7501AALS 750GB 7200 RPM 32MB Cache SATA 3.0Gb/s Hard Drive - Internal Hard Drives Newegg.com - Western Digital Caviar Black WD1001FALS 1TB 7200 RPM 32MB Cache SATA 3.0Gb/s Hard Drive - Internal Hard Drives Newegg.com - Western Digital Caviar RE2 WD5000ABYS 500GB 7200 RPM 16MB Cache SATA 3.0Gb/s Hard Drive - Internal Hard Drives Newegg.com - Western Digital RE3 WD3202ABYS 320GB 7200 RPM 16MB Cache SATA 3.0Gb/s Hard Drive - Internal Hard Drives I like Western Digital, but pick whatever. However, you have to think of cost per gigabyte, and the cost per gigabyte with 750gb drive right now out prices every other size. Prices are like this. 750 = $5.35 per GB 1tb = $6.25 per GB 500 = $5 per GB 320 = $4 per GB Graphics Well, cards go like this (best at top, worst at bottom) ATI --------Nvidia 4870 X2----GTX 280 4870-------GTX 260 (core 216) 4850-------GTX 260 - a little better (9800 GX2 around the same) 3870-------9800 GTX or 9800+ GTX or 8800 GTX (all better than 3870) 4670-------9600 GT (9600 is better, ATI just came out with a 4830, which is 9600s competition) This is all fairly approximate but close enough PSU I am not a fan of modular power supplies, they increase resistance, which is a bad thing. If you want to go SLI or Crossfire, your going to need from 700 to 800 watts. I like OCZ, PC Power and Cooling, FSP, and thermaltake seems to make fairly decent units as well. If you don't want to go dual card, 600w will do you fine. I will probably never buy into a dual card set-up again, because you really don't get all that much out of your investment of a second card. Display A good resolution would be something like 1680x1050, its pretty much impossible in this day and age to find a display manufacturer who displays real performance numbers, but what can you do. You want a contrast ratio of at least 1000:1 and a response time of around 5ms. I like LG, because regardless of what their numbers are, they don't use TN panels, which i am a HUGE fan of. Panel types are REALLY hard to find, but a very important part of a displays capability. Basically, TN panels are cheap, and easy to make, so they are used often, but have silly trademark problems. Newegg.com - LG L226WTQ-BF Black 22" 2ms GTG Widescreen LCD Monitor 300 cd/m2 3000:1 DCR with HDCP Support - LCD Monitors thats my recommendation
I am getting confused now and this thread is upto the point this seems a pertinent question. am planning a rig with q6600, 4850 and a P45 DS3 mobo crossfire compatible. I have read 2x4850 is slightly better than a GTX280 and leaning towards a crossfire board with this in mind for the future. I have also read on a review of that board that upon crossfire the ram performance suffers, but I think this was when it was maxed out clockwise in the first place so had to be dialed back (I didn't really understand the details however). I was hoping to afford 2x2gb 1066 but still undecided on this. I have also read about crossfire setups powered by 600+ PSU's and was therefore thinking of a corsair TX 650 to accomodate the potential for future crossfire. All this seems a bit counter to what you (the ninj) have said, but I am a total noob so cringe before your towering geekness....
Sorry just realised 2x4850 as good or better than GTX260 not 280, still seems a good deal for an upgrade if only current cash for x1 ok card
Yeah 4850 are pretty power efficient, so i think you should be good with around 600w, but that would be the minimum though. According to this thread, 2 HD4850s are faster than a GTX 280. ---edit--- Alternatively, you could run a 4870 and 4850 in crossfire as well.
Thank you Swansen, that was most helpful. I initially thought of getting a couple of cheap cards such as the HD3450 and running them in CrossFire, but I realized the extra power and heat (albeit not being a major consideration) would go over the roof anyway, so I'm sticking to a simple, one-card solution. As for motherboards, Gigabyte would be just fine since I've been using nothing but their motherboards up till now. Given a choice, I would prefer modular power supplies because they cause less clutter inside the case. Despite much effort tidying up, I still find extra molex plugs irritating and obstruct airflow. Switching to SATA would also produce the desired result, since I never mastered the art of IDE cable folding. :O Apart from the lower cost, I'm switching to AMD stuff because of their higher overall performance over an Intel of similar cost. Reason being perhaps cause AMDs process more stuff for the same number of clock cycles (AMD clears pipeline very 2, Intel every 4). Good for 3d apps, but not so much for word processing or vector graphic programs. Cheers, nicky9499 ---------------------------------------- Edit---I'd settle on the 3850 or the 3870. But now we've got another problem. I've got a variety of different memory types that rival that of toothbrushes in a Walmart store. Let's see: ASUS HD3450 256MB DDR2 ASUS HD3650 256MB TOP DDR2 ASUS HD3850 256MB GDDR3 ASUS HD3870 512MB GDDR4 ASUS HD3870 TOP 512MB GDDR4 GIGABYTE HD3850 256MB GDDR3 GIGABYTE HD3870 512MB GDDR4 POWER COLOR HD3650 1GB DDR2 POWER COLOR HD3850 256MB GDDR3 POWER COLOR HD3870 512MB GDDR4 SAPPHIRE HD3450 512MB DDR2 SAPPHIRE HD3850 256MB GDDR3 SAPPHIRE HD3850 512MB GDDR3 SAPPHIRE HD3870 512MB GDDR4 Jesus, talk about being spoilt for choice? I'm particularly interested in the Powercolor 1GB, but then again, specs are not my forte so you helpful people are going to have to help me out a little. :O In a rather unrelated incident, can anyone suggest how I would go about washing a Razer Mantis Control mat? (yes, those giant mousepads).

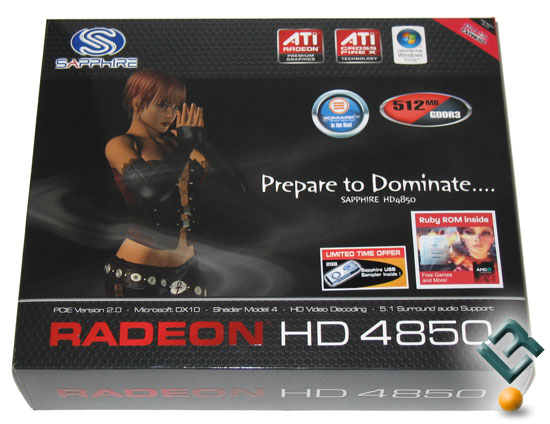

600W the bare minimum for a 4850? (I bought a 512GDDR3 btw) I'm intending to run up to 4 or 5 hard drives and 4 120mm case fans, would I need something higher than that? I bought a 450W guess I'm gonna have to bring it back to the store. :x:
HDDs use like 15-20 watts of power, optical drives use around 20w, mobos use like 40-60, then whatever your CPU is rated for. I think the 4850s use something like 150w ?? but i can't remember if thats idle power or under load. However, your would probably be able to get away with a 500w unit, HD4850s are rated for using a 450w PSU. just found it http://www.bigbruin.com/2008/sapphire4850_8
Thanks Swansen. I've got one more question: Now that I've got the AMD Athlon64 X2 5400+ processor (pretty boxed one), what's the best motherboard I can get out there for the below $200 range? I'm looking at the Asus M3A AMD 770 Socket AM2+ here but I'm not completely sure if they're compatible because a quarter of the specifications sound like gibberish to me. :O Cheerio, Nicholas.
yes, that will work fine, an alternative is THIS board, i like a couple feature it has over the Asus board, and more back panel connectors. Ether way though, they are both look like solid boards.

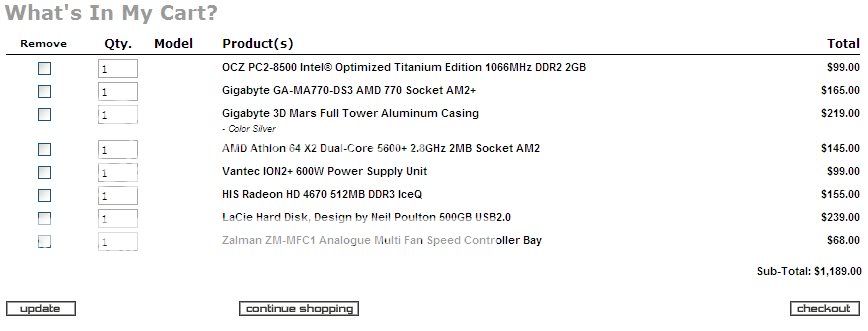

If it wasn't because of the price difference and more built in I/Os, I would have gone with ASUS and their proper-English documentation. Thanks for the suggestion. I'm currently building another machine for my dad, going by budget and specifications similar to mine. This time, it'll be an (almost) complete online build and have the parts delivered to my door. All the parts are from www.thepotterhouse.net, so feel free to refer. Pretty much decided on the parts, so I'm just checking for compatibility with each other (sufficient power supply, matching chipsets etc etc). Hard drives and monitor aren't included 'cause I'll just be using his current ones. Cheerio, Nicholas.
all looks good minus your memory choice. DDR2 1066 is only supported by AM2+ CPUs, in this case DDR2 800 is your best bet. Also, the HD 4670 isn't much of a gaming card, it does better for watching movies and that type of thing. ATI/AMD just came out with the HD 4830, which is direct competition with the 9600 GT, which is a budget gaming card.
The motherboard is an AM2+, the processor seems to be an AM2 although I'm not sure (maybe the positive sign was accidentally left out). What would happen if I use 1066 on an AM CPU? I'd most probably go with your advice on the video card. Cheerio, Nicholas.
DDR2 1066 is only supported by some AM2+ processors. So AM2 CPUs wouldn't recognize the memory. An alternative would be to get an AM2+ processor instead of what you have there.
