IBM Netvista

Computer Forum CPU, Motherboards and Memory
1

I’m trying to connect USB cables to an IBM Netvista 6794RT2.

My new case has front USB connector cables (VCC1, Data1, ETC.) The netvista motherboard has pins marked for USB, but I don’t know which cable goes to which pin.

Does anyone know anything about the pin out for USB on the Netvista 6794RT2?

Thanks in advance.

2

This ought to answer your questions.

3

Which Cable do you have?

1

usb-cables
usb-cables202×200 19 KB

Goes in

http://www.cablewholesale.com/prodimages/10u2-021.jpg

Goes in

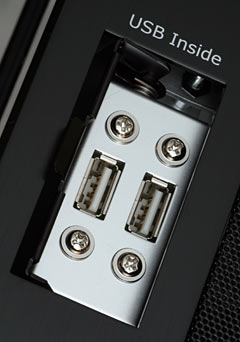

frontports240
frontports240240×342 15 KB

  1. http://www.ebusinesscables.com/images/usb-mini-b.jpg
    Goes in
    http://www.directgt.com/ebay/USBDEPOT/A56/A56-4.jpg

Or you have any other USB Cable or Port?
